1.27mm single row smt surface mount dual base pin connector

Specification

Current Rating: 1 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 300V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

1.27mm single row smt surface mount dual base pin connector

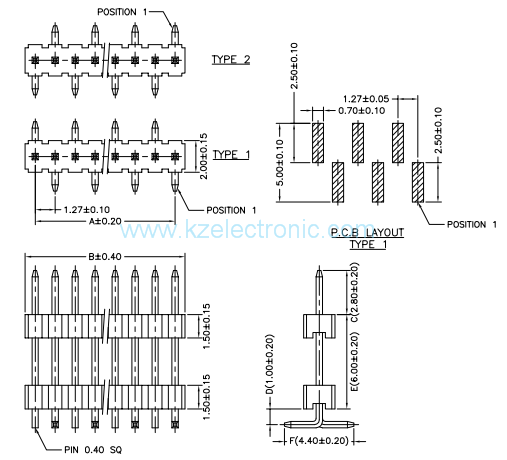

Drawing for reference

Founded in 2011, Shenzhen Kezo Electronic Co., Ltd mainly focus on manufacturing and supply of connectors in China.

Being one of the pioneering manufacturers of connectors in China, we have more than 3,000 square-meter facility area and about 100 experienced workers.

We mainly provide

• Pin header
• Female header
• Box header
• Ejector header
• Other

Our Principles: Integrity is the base, Customers come first.

we pay more attention to our customer's satisfaction, which is the base to make our products popular worldwide.
