2.0mm double row right angle ejector header connector

Product details
Pitch: 2.00mm
Gender: Header
Number of contacts: 06-70 pin
Mount type: Through hole
Number of Rows: Dual row
Elevated: No
Orientation: Right angle
Square Pin Diameter: 0.50mm
Insulator colour: Black

Current Rating: 2 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PBT(OPTION)
Manual Solder: 350°C for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230°C for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

2.0mm double row right angle ejector header connector

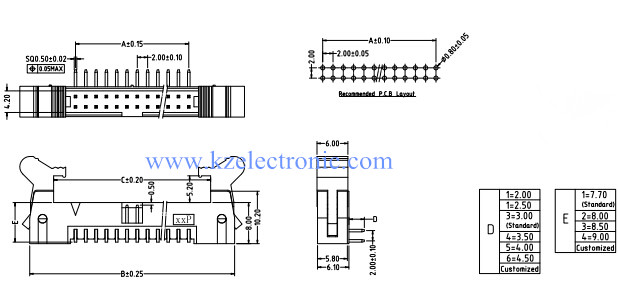

Drawing for reference

If you have any requirement, please contact us.
