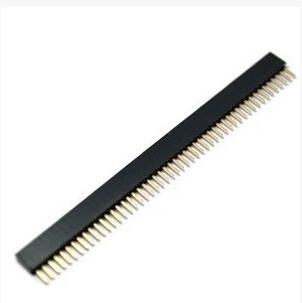

Single row 1.27mm pitch female header 180° straight socket connector

Product details
Pitch: 1.27mm
Gender: Socket
Number of contacts: 02-50 pin
Mount type: Through hole
Number of Rows: Single row
Elevated: No
Orientation: Straight
Square Pin Diameter: 0.35mm
Insulator colour: Black

Current Rating: 1 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

Drawing
